Rogue FM-6 Functional Trainer - Add-On
Rogue FM-6 Functional Trainer - Add-On
Existing Rack Height:*
Existing Rack Depth:*
Resistance Type:*
Pulley Type:*
Add Shrouds?*
Rogue FM-6 Functional Trainer - Add-On AccessoriesAvailable Options (9)
Gear Specs | |
| Brand | Rogue Fitness |
| Color | Various Colors |
| Made In USA | Yes, with Imported Pulleys |
| Length | 22.1" (Plate Loaded added height) 17.8" (Weight Stack added height) |
| Width | 55.1" (no weight storage) 75 5/8" (with weight storage) |
| Height | 1.125” (Added height) |
| Foot Print | 81.1" - 100.1" x 55.1" (Plate Loaded) 76.8" - 95.8" x 55.1" (Weight Stack) |
| Steel Notes | Pulley Plates: 1/4" Steel Plate Loaded Rail: 3x6" 11 Gauge Steel |
| Cable Type | 3/16" US Made Mil Spec Aircraft Cable |
Product Description

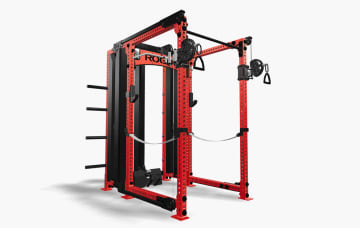

Transform your RM-6 Monster Rack with the Rogue FM-6 Twin Functional Trainer Add-On–the ultimate training solution in a compact footprint. The add-on features a dual weight stack design that nests into the back of your rack instead of behind it, saving you valuable gym space. The added weight stacks provide you with a vertically adjustable 2:1 functional trainer and a 1:1 lat pulldown and low row, all while maintaining the full functionality of your power rack.
INNOVATIVE PULLEY CONFIGURATION

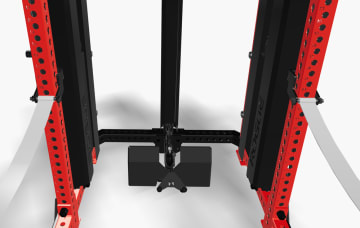

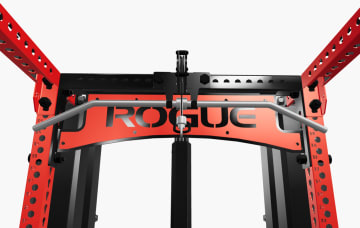

The patent pending pulley configuration achieves a 2:1 ratio for the functional trainer and 1:1 for the lat pulldown and low row, using a dual weight source available as a 300LB weight stack. This configuration also allows the user to seamlessly move between the lat pulldown, low row, and trolleys without ever needing to reconfigure or attach/detach a carabiner. Independent weight sources allow the two front trolleys to be set independently, allowing for more versatility in multiple station training.
COMPAct Footprint

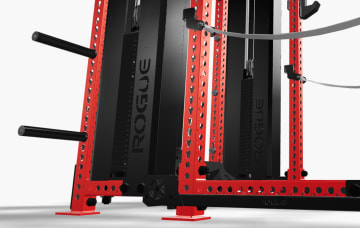

The compact footprint of the Rogue FM-6 Functional Trainer line has been further minimized. By positioning the weight sources on the side of the rack, the overall depth has been reduced, extending only 3.5” behind the back of the rack
OVERBUILT BY DESIGN
As with all Rogue products, the FM-6 Twin Functional Trainer Add-On is overbuilt for durability. Larger pulleys contribute to longer cable life, and the US-made Mil spec aircraft cable ensures exceptional longevity compared to imported alternatives. Shrouds come standard to enclose moving parts.
EFFORTLESS ADJUSTABILITY
Vertical adjustment of the trolleys is effortless thanks to four precision machined rollers and a counterweight. Swiveling pulleys guarantee the optimum angle for every movement. There is no need to reconfigure, whether you want to perform single or double arm movements with the trolley or want to use the pulldown or low row functionality, just grab and go.
BUILT ON THE RM-6 MONSTER RACK 2.0
The RM-6 is a fully customizable Monster Rack utilizing 3x3" 11-gauge steel tubing, over-sized 1" hardware, and a bolt-together design for easier portability and affordable shipping. The 2.0 version includes a wide spectrum of custom color options, laser-cut pin position numbers on the uprights and bottom crossmembers, and a keyhole pattern on the sides of each upright—creating compatibility with more add-ons and attachments.
Important: This rack must be bolted to the floor before use.
Read More
Rogue FM-6 Twin Functional Trainer Add-On
Transform your RM-6 Monster Rack with the Rogue FM-6 Twin Functional Trainer Add-On–the ultimate training solution in a compact footprint. The add-on features a dual weight stack design that nests into the back of your rack instead of behind it, saving you valuable gym space. The added weight stacks provide you with a vertically adjustable 2:1 functional trainer and a 1:1 lat pulldown and low row, all while maintaining the full functionality of your power rack.
INNOVATIVE PULLEY CONFIGURATION
The patent pending pulley configuration achieves a 2:1 ratio for the functional trainer and 1:1 for the lat pulldown and low row, using a dual weight source available as a 300LB weight stack. This configuration also allows the user to seamlessly move between the lat pulldown, low row, and trolleys without ever needing to reconfigure or attach/detach a carabiner. Independent weight sources allow the two front trolleys to be set independently, allowing for more versatility in multiple station training.
COMPAct Footprint
The compact footprint of the Rogue FM-6 Functional Trainer line has been further minimized. By positioning the weight sources on the side of the rack, the overall depth has been reduced, extending only 3.5” behind the back of the rack
OVERBUILT BY DESIGN
As with all Rogue products, the FM-6 Twin Functional Trainer Add-On is overbuilt for durability. Larger pulleys contribute to longer cable life, and the US-made Mil spec aircraft cable ensures exceptional longevity compared to imported alternatives. Shrouds come standard to enclose moving parts.
EFFORTLESS ADJUSTABILITY
Vertical adjustment of the trolleys is effortless thanks to four precision machined rollers and a counterweight. Swiveling pulleys guarantee the optimum angle for every movement. There is no need to reconfigure, whether you want to perform single or double arm movements with the trolley or want to use the pulldown or low row functionality, just grab and go.
BUILT ON THE RM-6 MONSTER RACK 2.0
The RM-6 is a fully customizable Monster Rack utilizing 3x3" 11-gauge steel tubing, over-sized 1" hardware, and a bolt-together design for easier portability and affordable shipping. The 2.0 version includes a wide spectrum of custom color options, laser-cut pin position numbers on the uprights and bottom crossmembers, and a keyhole pattern on the sides of each upright—creating compatibility with more add-ons and attachments.
Important: This rack must be bolted to the floor before use.
Gear Specs
Specifications:
- Made in USA with Imported Pulleys
- Length: 63" - 82”
- Width: 58.7" (no weight storage), 75 5/8" (with weight storage)
- Height: 91.5", 101.5"
- Steel Notes: Rack: 3x3" 11 Gauge Steel, Pulley Plates: 1/4" Steel
- Monster Compatible
- Pulley Ratio: Functional Trainer 2:1, Low Row/Lat Pulldown: 1:1
- Cable: 3/16" US Made Mil Spec Aircraft Cable
- Cable Attachments: Stainless Steel Clevises - Machined in USA
- Weight Source: (2) 300LB Weight Stacks

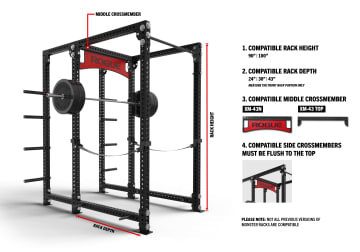

Rack Comparison
FM-6 Twin Add-On Gear Spec Comparison:
Select your Rack Height:
| Rack depth | 24" | 30" | 43" |
|---|---|---|---|
| Made in USA | Yes - Imported Pulleys | Yes - Imported Pulleys | Yes - Imported Pulleys |
| Length | 63" | 69" | 82" |
| Width | 58.7" (no weight storage) 75 5/8" (with weight storage) | 58.7" (no weight storage) 75 5/8" (with weight storage) | 58.7" (no weight storage) 75 5/8" (with weight storage) |
| Total Height | 91.5" | 91.5" | 91.5" |
| Foot Print | 63" x 58.7" (no weight storage) 63" x 75 5/8" (with weight storage) | 69" x 58.7" (no weight storage) 63" x 75 5/8" (with weight storage) | 82" x 58.7" (no weight storage) 82" x 75 5/8" (with weight storage) |
| Steel Notes | 3x3" 11 Gauge Steel | 3x3" 11 Gauge Steel | 3x3" 11 Gauge Steel |
| Front Trolley Cable Travel | 90" | 90" | 90" |
| Lat Pulldown / Low Row Cable Travel | 90" | 90" | 90" |
| Monster Compatible | Yes | Yes | Yes |
| Rack depth | 24" | 30" | 43" |
|---|---|---|---|
| Made in USA | Yes - Imported Pulleys | Yes - Imported Pulleys | Yes - Imported Pulleys |
| Length | 63" | 69" | 82" |
| Width | 58.7" (no weight storage) 75 5/8" (with weight storage) | 58.7" (no weight storage) 75 5/8" (with weight storage) | 58.7" (no weight storage) 75 5/8" (with weight storage) |
| Total Height | 101.5" | 101.5" | 101.5" |
| Foot Print | 63" x 58.7" (no weight storage) 63" x 75 5/8" (with weight storage) | 69" x 58.7" (no weight storage) 69" x 75 5/8" (with weight storage) | 82" x 58.7" (no weight storage) 82" x 75 5/8" (with weight storage) |
| Steel Notes | 3x3" 11 Gauge Steel | 3x3" 11 Gauge Steel | 3x3" 11 Gauge Steel |
| Front Trolley Cable Travel | 100" | 100" | 100" |
| Lat Pulldown / Low Row Cable Travel | 100" | 100" | 100" |
| Monster Compatible | Yes | Yes | Yes |
Included Accesories
THE ROGUE FM-HR FUNCTIONAL TRAINER COMES STANDARD WITH THE FOLLOWING ACCESSORIES:
Single Handle Cable Attachment Pair
Stainless Lat Bar
Standard Grip Triangle
Monster Band Pegs
FAQ
Shipping
Rogue Fast Shipping
The Rogue Shipping System allows you to track your order from the time you place it to the time it hits your door. Order today, track today.
KEY FEATURES OF THE ROGUE FM-6 FUNCTIONAL TRAINER Add-on:
Power Rack/Functional Trainer/Lat Pulldown/Low Row in One
Maintain a fully functioning power rack while adding a 2:1 weight ratio functional trainer and 1:1 weight ratio lat pulldown/low row. With the addition of a second weight stack on the Rogue FM-6 Twin Functional Trainer, you have the ability for two users to work at the same time on the adjustable pulleys, performing completely different movements.
1:1 with standard attachments
Our pulley configuration allows the use of standard attachments for the lat pulldown and low row while providing 1:1 resistance. Many other products require specialized attachments with multiple attachment points to achieve 1:1 resistance.
FULLY FUNCTIONAL POWER RACK IN A CONSOLIDATED FOOTPRINT
Even with all the added capabilities, a fully functional power rack stands at the core. You can lift in the rack with multiple safety options as well as off the front of the rack. By building the weight stacks into the frame of the rack, the pulley system extends only 3.5” behind the rack maximizing your gym’s footprint.
Configure your Rack
Fully customize your Monster rack with the Rogue FM-6 Twin Functional Trainer Add-On by choosing everything from rack depth, down to your preferred hardware color and pulley type.
